Máquina de encuadernación vertical automática multifuncional de la empaquetadora de la caja de ZH 50
| Lugar de origen | China |
|---|---|
| Nombre de la marca | CHIC |
| Certificación | CE ISO |
| Cantidad de orden mínima | 1 pedazo |
| Detalles de empaquetado | El embalaje dentro es películas plásticas y el exterior es caso de madera de la fumigación. Nuestro |
| Tiempo de entrega | 30 días laborables |
| Condiciones de pago | L/C, T/T, Western Union |
| Capacidad de la fuente | 20 PC /month |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre | Empaquetadora de encuadernación automática de la vertical multifuncional de la botella | Tipo conducido | Eléctrico |
|---|---|---|---|
| Grado automático | Automático lleno | Voltaje | fase de 380V 50Hz 3 |
| Capacidad | 30-50 cartones/minuto | Dimensión | 1590*1380*1832 milímetro |
| Resaltar | Empaquetadora multifuncional de la caja ZH-50 automática,empaquetadora de la caja 650Kg automática,máquina de encuadernación vertical |
||
Descripción de producto

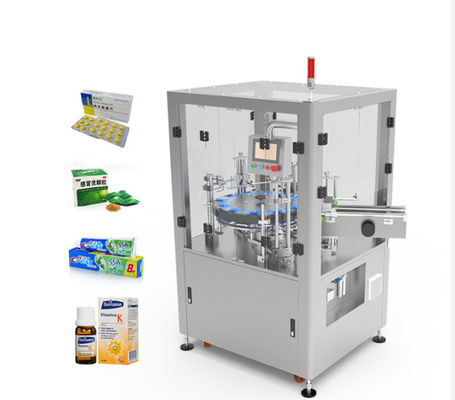

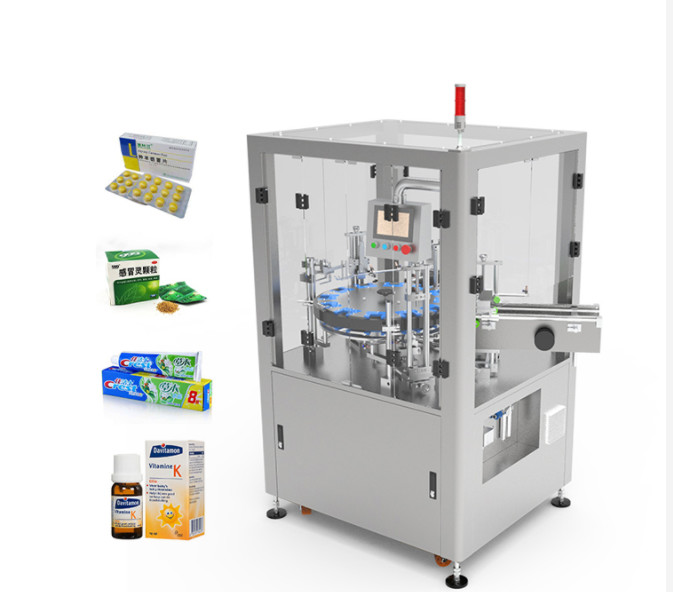

Multifunctional Bottle Vertical Automatic Cartoning Packaging Machine
Application:
Automatic Vertical Cartoning Machine (box folding→filling→packing)
It is specially design to automatic pack small quantities’ multi size box. With low cost and only require small area. This machine is applicable for cylinder-shaped, tubular and Irregular shape products. And it is used for cosmetic, bottles,blister packs, pouches, sachets or tube etc. packing into square box. The whole equipment is made of stainless steel 304, made of aluminum alloy with anode treatment. Rust proof long service life and easily clean.
Our cartoning machine can be equipped with options to fit the needs of any project, from serialization and plant software integration to custom carton shapes and sizes. Send us an inquiry today for help specifying the exact equipment your application needs.
Specifications :
|
Model
|
ZH-50
|
|
Packing speed
|
20-50 Cartons/min
|
|
Carton size range
|
L(40-310)*W(12-185)*H(12-132) mm
|
|
Carton gram requirements
|
135-350g/m3
|
|
Motor power
|
2.5KW
|
|
Power supply
|
Three phase 380V 50Hz
|
|
Machine noise
|
≤80dB
|
|
Air pressure
|
0.5-0.8 Mpa
|
|
Air consumption
|
150L/min
|
|
Dimension
|
1590*1380*1832mm
|
|
Weight
|
650Kg
|
Feature:
-1.This equipment is specially designed for small output and multi-size carton packaging.
-2.Small footprint, economical and practical and suitable for a variety of boxes. -3.Save labor cost, 40 boxes per person per minute, greatly improving production efficiency. -4.The whole equipment is made of stainless steel 304. -5.The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted at will without adjusting any other parameters. -6.Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate. -7.The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine. -8.This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine. -9.Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.
machine accessory list:
|
Name
|
Number
|
Brand
|
Brand origin
|
|
Touch screen
|
1
|
Siemens
|
Germany
|
|
PLC
|
1
|
Siemens
|
Germany
|
|
Relay
|
12
|
Omron
|
Japan
|
|
Circuit breaker
|
3
|
Schneider
|
Germany
|
|
Air switch
|
1
|
Schneider
|
Germany
|
|
Suction box cylinder
|
1
|
Festo
|
Germany
|
|
Vacuum generator
|
1
|
Festo
|
Germany
|
|
Lower lock box cylinder
|
3
|
Festo
|
Germany
|
|
Lock box cylinder
|
3
|
Festo
|
Germany
|
|
Whole box cylinder
|
1
|
Festo
|
Germany
|
|
Cylinder box out
|
1
|
Festo
|
Germany
|
|
Pressure box cylinder
|
1
|
Festo
|
Germany
|
|
Solenoid valve
|
12
|
Festo
|
Germany
|
|
Triple Filter
|
1
|
Festo
|
Germany
|
|
Emergency stop switch
|
1
|
Schneider
|
Germany
|
|
Indicator light
|
1
|
Schneider
|
Germany
|
|
Empty box probe
|
1
|
SICK
|
Germany
|

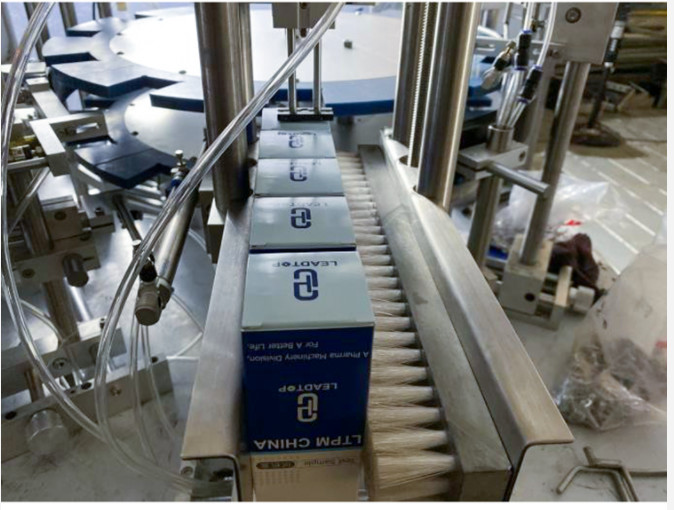

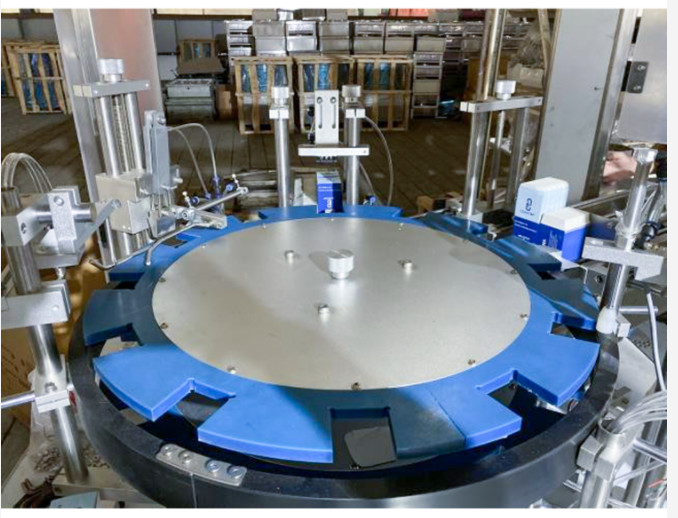

Samples:
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product?
2. Production size or bag/sachet/pouch/carton size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag/carton type.
Q2: Are you a real factory/manufacturer?
Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.
You don’t have time? We can use live video and you can visit us on line.
Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4. How can we make sure about the machine quality after placing the order?
Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q5. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use trade assurance service, protect your money, machine quality and delivery are guarantied
Q6. Can you explain me the whole transaction progress ?
1. Sign the Contact/order on we have trade assurance.
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q7: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
