Direct Driven Used 11kw 15hp Screw Drive Air Compressor

  • Direct Driven Used 11kw 15hp Screw Drive Air Compressor
  • Direct Driven Used 11kw 15hp Screw Drive Air Compressor
  • Direct Driven Used 11kw 15hp Screw Drive Air Compressor
Lugar de origen CHINA
Nombre de la marca OEM
Certificación CE
Número de modelo CHIC-15A
Cantidad de orden mínima 500
Precio USD 40-45
Detalles de empaquetado tamaño que embala (L×W×H): 800mm×600mm×1040m m
Tiempo de entrega 7days
Capacidad de la fuente 500PCS/DAY

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre compresor de aire usado conducido directo del tornillo de 11kw 15hp CHIC-15A Entrega aérea ³ /min del 1.6m
ELECTRICIDAD 220/60 o 440/60 trifásico (V//Hz) Presión 8bar
nivel de ruidos 62±2dB Poder 15hp/11KW
N.weigh 470kgs Color azul
Resaltar

11kw screw drive air compressor

,

15hp screw drive air compressor

,

15hp screw compressor
Deja un mensaje

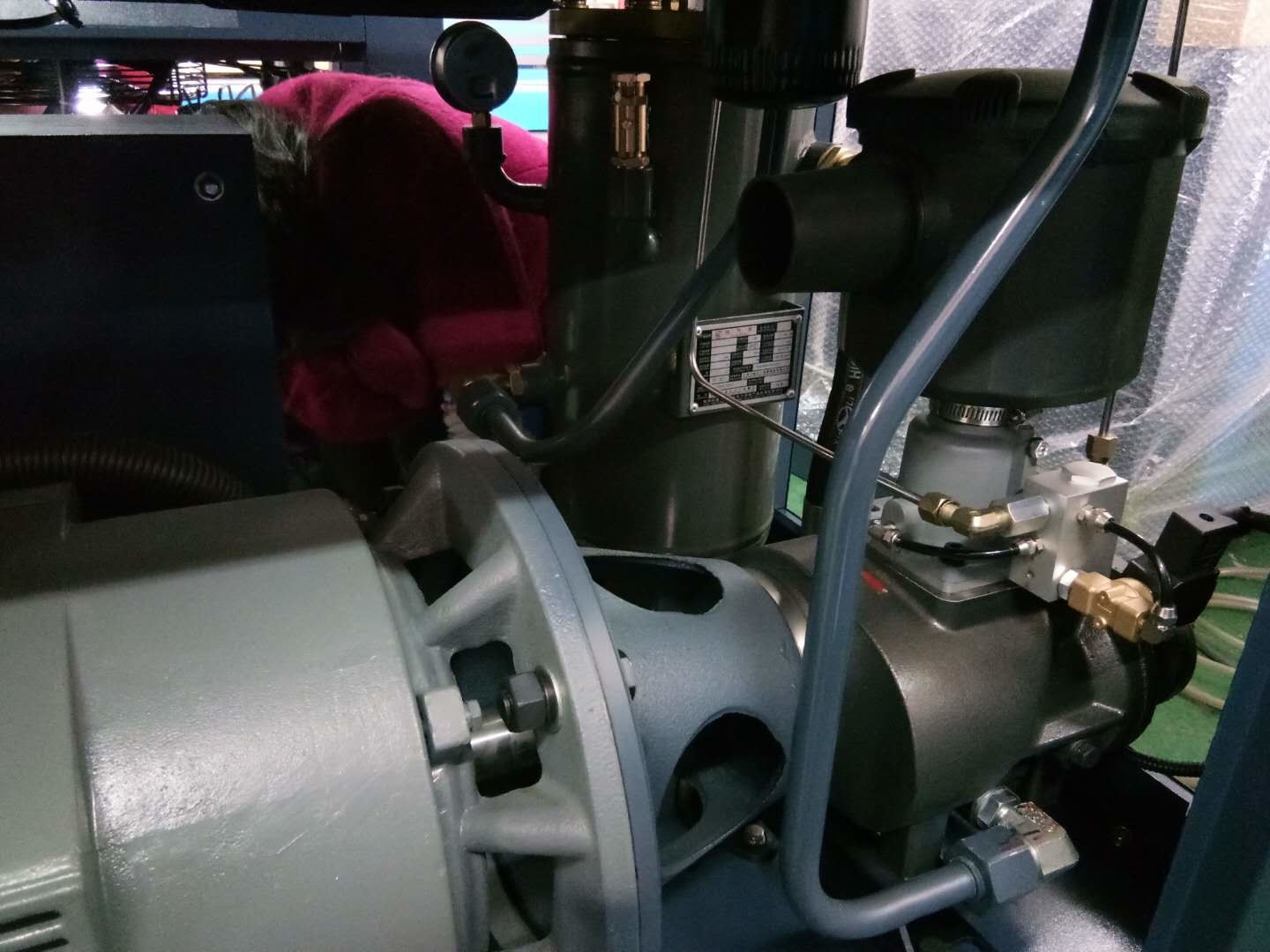

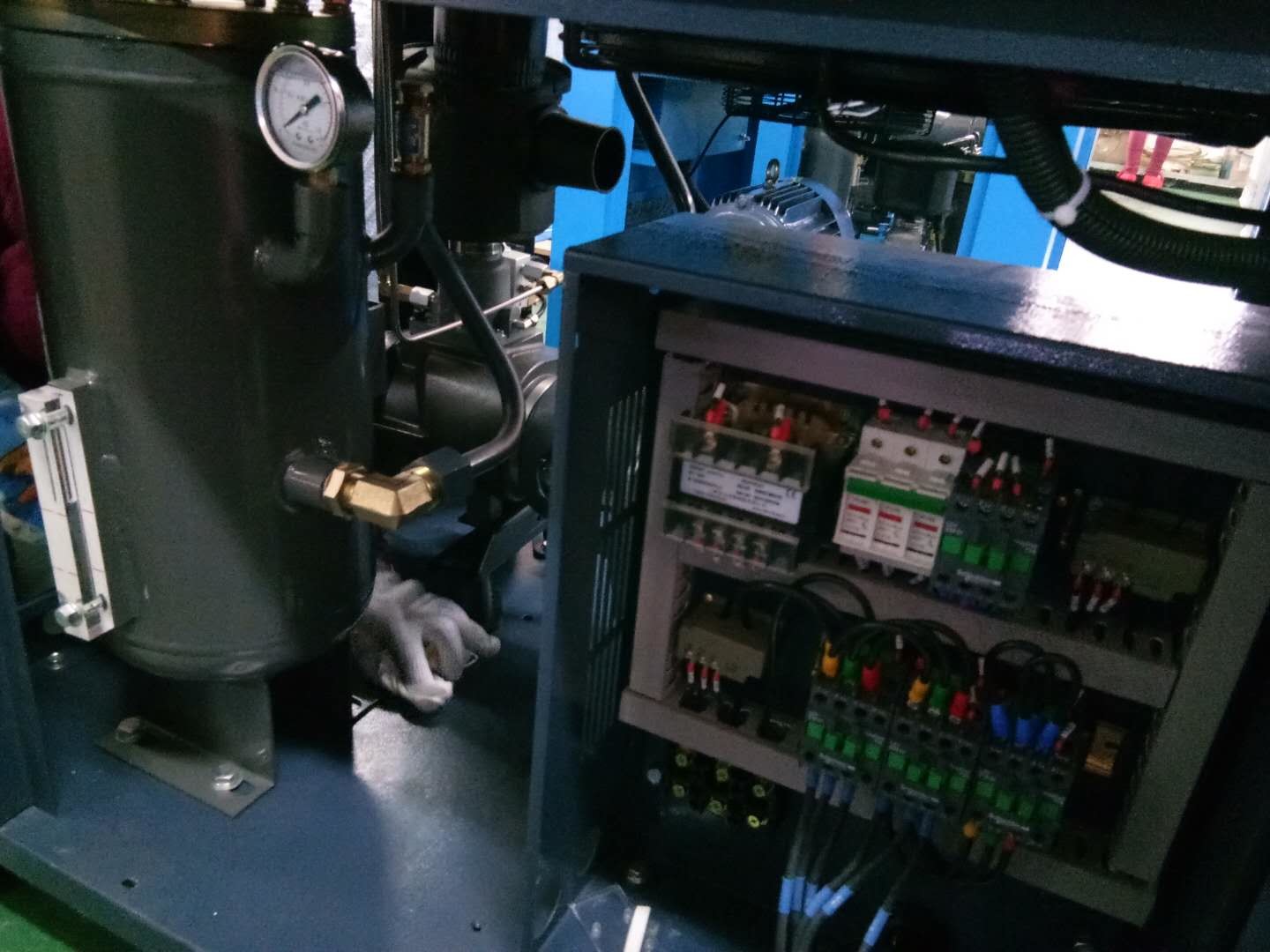

Descripción de producto





OIL &GAS SEPARATOR

Makes the oil content less than or equal to 3ppm

Cooler fan

High efficirency and learge air volume , greatly lower the temperature , prolong the lubricating oil change period

EXHAUST

The exhqaust from the com-pressor is directly discharged to the tank which reduces the intermediate connecting pipe and effectively saves space

High performance frequency converter

Makes the operation more stable and carrying out real-time vetor calculation according to different air delivery

NO electirc excitation no fundamental wave iron , less copper loss and less calorific value whose efficiency is 5-12% higher than that of the same capacity asynchronous motor



Direct Driven Used 11kw 15hp Screw Drive Air Compressor 0





Technical parameters



Model CHIC-15A
Power 15HP/11KW
FAD: (M3/MIN) 1.6
Pressure 8 bar
Cooling Air-cooling
Lubricant 14L
Noise level 65±2dB
Drive method Driect driven type
Discharge temperature Environment temp+15℃
Electricity Three phase 220/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch) R3/4"
Material contact with us
delivery 15-20 days
Oil content of air <2ppm
Dimension 1030MM*850MM*1280MM
Net weight 470KGS

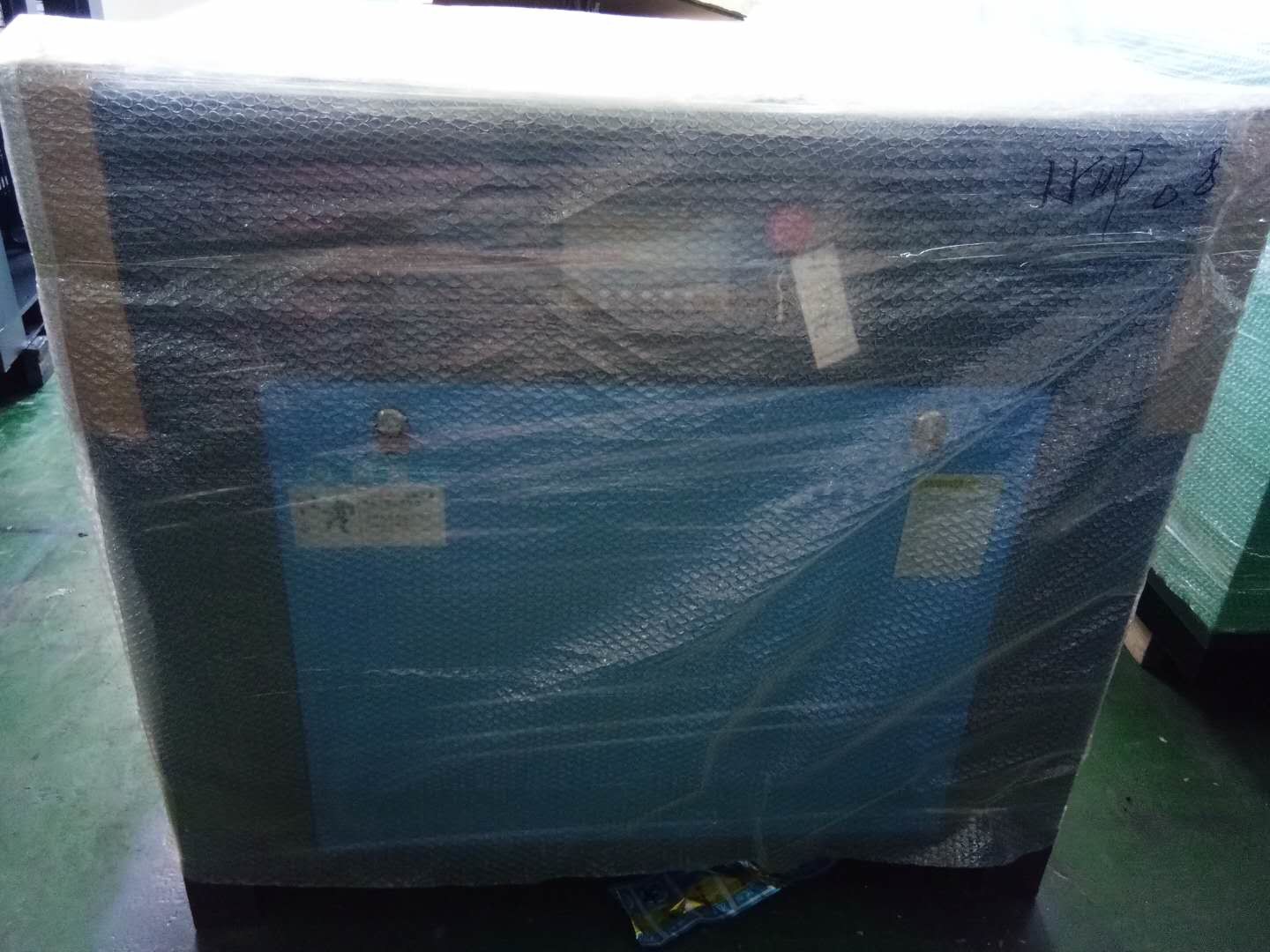

Packaging & Shipping



Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



Direct Driven Used 11kw 15hp Screw Drive Air Compressor 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
